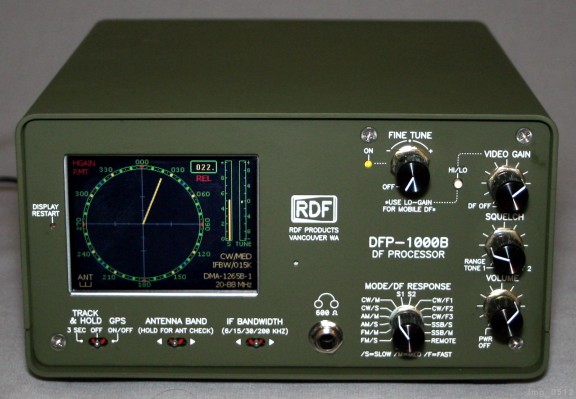

RDF Products DFP-1000B Radio Direction Finding Bearing Processor/Display

FEATURES

Adds Radio Direction Finding Capability To Most Receivers
Real-Time TFT Polar Bearing Display For Optimum Performance In Dynamic DF Environments
Specifically Designed For Radio Direction Finding In Motion
3-1/2 Digit Numeric Bearing Display w/0.5 Degree Resolution
AM/FM/CW/SSB Demodulation Capability With Built-In Loudspeaker
Specifically Designed For Radio Direction Finding In Motion
Simultaneous Radio Direction Finding And Listen-Thru Capability
Selectable Bearing Integration Times
Ultra-Fast Response (down to 35 ms) For Reliable Interception Of Short-Duration Signals
Bearing Track & Hold Feature
Dual-Mode Range Tone
Selectable 6/15/30/200 kHz IF Bandwidths
10.7 MHz Or Custom IF Signal Interface With Host Receiver
Reads DF Antenna Model/Band Data From DF Antenna Personality Modules
GPS Receiver & Digital Compass Inputs
Full RS-232 Remote Control Capability With Windows Software Thru Single Com Port
